Alisam Engineering of Lima, New York
A-LEE-SAM



Sharpening

Our flagship product!

Alisam's "Sharpening Sled ™"

The easiest, fastest, most precise way to hand sharpen/hone your chisels, handplane and scraper plane blades! *

Made of sturdy anodized aluminum.

Alisam Sharpening Sleds

Four easy steps:

  1. Loosen black handles and set your desired bevel angle using the precise, laser engraved index marks. Tighten handles.
  2. Place the guide over your sharpening stone.
  3. Insert blade, push alignment "slide" up against the side of the blade to ensure a square edge.
  4. Tighten brass toggle foot clamp to secure blade and away you go!

The front wheels are able to move up and down about .010", allowing for continued blade contact with the stone, as blade material is removed by the honing process.

Alisam Sharpening Sled with laser engraved index marks

* Depending on model



quotation Thanks for making a device that really works! Don't know what's so hard about it but the rest of them I have tried can't hold the blade straight or secure. Thanks again for my #SS2. It really works."

T.J., Roseville, MN

quotation A very nice design which solves the problems of a honing jig in an elegant fashion. You should be more widely known."

R.C., Warrimoo, NSW, AU

quotation Of all the guides I tried, this one was the most comfortable to use!"

Woodsmith Vol. 32, No 187

quotation It's a excellent tool and works perfectly. Much easier than the Lee Valley one. I will be showing it off to all the wood workers I know"

K.M., Langley, BC



Alignment "Slide"

Alisam Alignment Slide

Three models to choose from ...

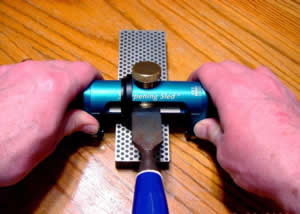

Alisam Sharpening Sled Model SS1
Model SS1
$89.99

Sharpen using up to 1 inch thick X 4 inch wide stones any length. Hone blades up to 3 inches wide.

Positive stop detents from 5 to 60 degrees.

Alisam Sharpening Sled Model SS1

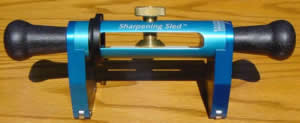

Model SS2
$95.99

Sharpen using 1 to 2 inch thick stones, now up to 4 inches wide.

Increased blade capacity to 3 inches in width.

Extended range of positive stop detents from 5 to 60 degrees.

Alisam Sharpening Sled Model SS1
Model SS3
$89.99

Our shortest model

Sharpen on surface plates, table saw tops using abrasive paper or paste, or up to 3/8 inch thick stones, 4 inches wide.

Increased blade capacity for up to 3 inch wide scraper-plane blades, like Lie-Nielsen or Stanley.

Extended range of positive stop detents from 5 to 60 degrees. "Back-beveling"
your plane blades could not be easier using the 5 or 10 degree positions.

get more information

get more information

get more information

Optional Side Supports

Optional Side Supports for the "Sharpening Sled ™"

No need to purchase all models if you own several different size sharpening stones!

Alisam Model SS1A Side Support
Model SS1A Side Supports
$42.99

Convert your #SS2 or #SS3 to utilize 1 inch thick sharpening stones.

Alisam Model SS2A Side Support
Model SS2A Side Supports
$45.99

Converts the standard 1 inch model #SS1 or the #SS3 to be able to use up to 2 inch thick stones.

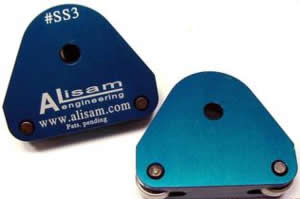

Alisam Model SS3A Side Support

Model SS3A Side Supports

$39.99

Convert any model for surface plate work.

get more information

get more information

get more information

Replacement Handles

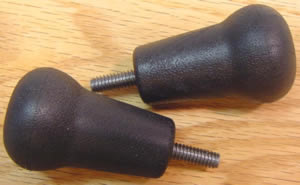

Alisam Replacement Black Plastic Handles
Replacement Black Plastic Handles
$8.99

Use with any model Sharpening Sled.

Sold in pairs.




get more information
